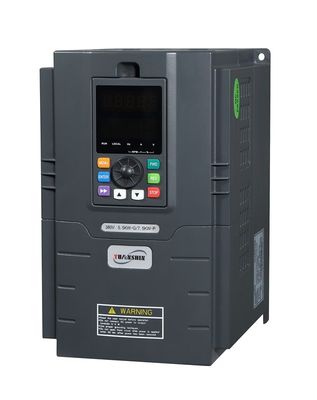

YX3000 Series Single / Three Phase Auto Frequency Converter Depend

YX3000 series single/three phase automatic frequency converter

YX3000 Series General Purpose Frequency Inverter is specially designed for variable frequency control and energy saving.

Instruction

YX3000 Series Sensor-less Vector Control Frequency Inverter is a function enhanced product with strong stability. It takes use of Fuji IGBT and the TI DSP chip set, completely optimizes vector control and V/F control. It has been widely deployed in various industrial environment, and special in situations requiring speed control precision pump torque response speed and low-frequency output.

Specification

Technical Features

1. Two control modes: V/F control, and sensor-less vector control;
2. Starting torque: 0.4Hz-20Hz;
3. Internal brake unit has been deployed, and the braking resister can be connected outside for a quick stop;
4. Five kinds of V/F control, which are constant torque V/F curve, One kind of customer defined V/F curve, 3 kinds of down torque curve (2.0/1.7/1.2 times the power).
5. Through PLC or internal control terminal, multi-speed control and PID control could be realized. And users could combine a variety of operating modes while it’s necessary;
6. Supporting multi-frequency deploy methods: digital setup, PID setup, analog quantity setup, and communication setup;
7. Supports starting and stopping DC brake;
8. YX3000 is Equipped with jump frequency control, which prevents mechanical resonance and makes the system more stable and reliable;
9. YX3000 has build-in PI in order to establish close-loop control system easily;
10. YX3000 is designed with the central frequency switch function, which let the end user to fix the central frequency while it is necessary;
11. YX3000 has been equipped with RS485 communication interface, which support MODBUS protocol with ASCII and RTU forms;
12. Working with water supply accessory to realize multiple-pump stable pressure water supply function.

Application

1. Boiler drum, Induced draft fan, Mine exhaust fan;
2. Energy-saving central air conditioning, Energy-saving air compressor
3. Mechanical equipment, Conveyor
4. Oil injection pump, Oil transfer pump;
5. Circulating pump, water supply pump, constant pressure water supply;

Machine Size
