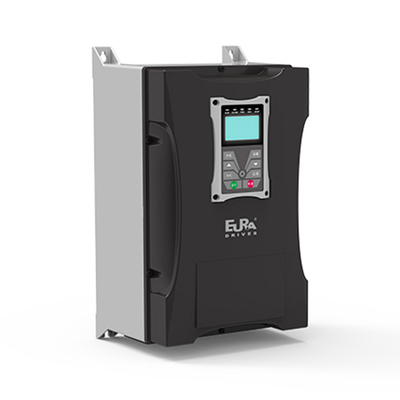

Waterproof and Dustproof IP66 Protection Frequency Converter 18.5KW VFD Three Phase AC Drive Inverter EP66-0185T3 380V-460V VSD 50HZ/60HZ

1 Piece
MOQ
$1,035.00(1 - 9 Pieces) $1,000.00(10 - 19 Pieces) $960.00(20 - 49 Pieces) $930.00(>=50 Pieces)
Prijs
Waterproof and Dustproof IP66 Protection Frequency Converter 18.5KW VFD Three Phase AC Drive Inverter EP66-0185T3 380V-460V VSD 50HZ/60HZ
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: EP66-0185T3
Warranty: 1YEARS
Type: IP66 high protection universal
Certificering: UL CE
Customized: NO
Control Mode: VVVF SVC
Rated Power: 18.5KW
Nominal Voltage: 380V
power phase number: 3PH
Protection class: IP66 / NEMA4
Operating temperature: -10......+40 °C (-40 with optional antifreeze control)
Humidity: 0 to 95% RH, non-condensing, non-corrosive
Frequency resolution: 0.01HZ
Overload capability: 150% - 60 sec. / 10 min
Basis informatie
Certificering: UL CE
Model Number: EP66-0185T3
Betalen & Verzenden Algemene voorwaarden
Supply Ability: 100000 Piece/Pieces per Year
Productomschrijving
EP66  Series

[Product description]

In harsh conditions, prevent dust of other thing from entering inverter totally. Completely protected against jets of waterheavy waves. Meeting EN 60529 standard.


Product Introduction

[Product characteristics]

High-tech motor control concept, based on advanced DSP technology

⊙ Drive optimization by smart, build in AUTOTUNING-functions, precise sensorless vector control algorithm.

⊙ High starting torque at low speed, high precisiontorque performance, adjustable to all different kind of load characteristics

⊙ Speed / torque control modes

⊙ Kinds of torque compensation mode in VVVF control mode.

⊙ Sensorless vector control for PMSM


[Application industry]

EP66 series inverters can be used in harsh conditions, it can completely protected against jets of waterheavy waves. This series are widely used in the industries of process-automation, machine-tools, fanpumps, building automation, material handling,automotive, textile, dyeing, printing, packaging, robotics, centrifugal, woodprocessing, foodbeverage, cemical industry, oilgas,public-community, steel-mill, miningretrofit.
Product Parameters
Elron Projekt EP66 Mittelfrequenz

High frequency inverter with high protection degree: IP66 Frequency range up to 1300 Hz Customer specific solutions up to 15 kW
Ventilator with EP66
Compact fan control, inverter mounted directly on the fan assembly IP66 protection degree, for outdoor use (with shadowing) For
industrial and residential area (C1 filter as internal option available)
EP66 90kW
Deep well pump drive (up to 150m). Multiple pump stages for irrigation water supply on different levels. Suitable for decentral
power supply (genset), due to low startup current. For outdoor use (with shadowing).
