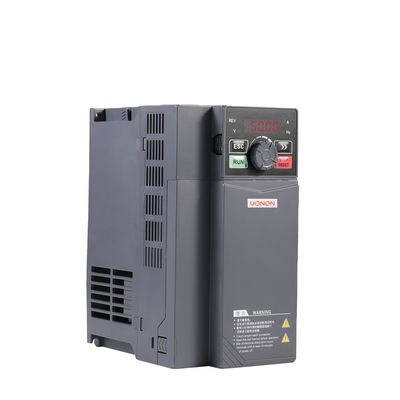

Improve Performance Regulation Frequency Variable Speed ​​7.5kw 380V Switch VC Inverter AC Drive

1.0 piece
MOQ
Improve Performance Regulation Frequency Variable Speed ​​7.5kw 380V Switch VC Inverter AC Drive
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: V3000-4T0075GB
Warranty: Other
Type: ac drive
Certificering: ce
Size: 15.4*10.9*20.7CM
Customized: Yes
Control Mode: VVF; speed sensorless vector control (SVC)
Rated Power: 7.5kw
Nominal Voltage: 380V
power phase number: 3
Product name: Frequency Inverter VFD
Material: ABS
Color: Dark Grey
Feature: Better performance
Application: Industrial Equipment Ect
Condition: 100%new
Overload Capacity: 150% Rated Current / 60s
Output Frequency: 0-600Hz/0-3000Hz
OEM: Support
Protection: IP20/IP21 (with plastic baffle)
Basis informatie
Certificering: ce
Model Number: V3000-4T0075GB
Betalen & Verzenden Algemene voorwaarden
Packaging Details: paper pack-ups
Productomschrijving

Rated voltage of
power supply


Model

Applicable
motor power
(kW)

Heavy-duty
rated output
current (A)

Light-duty
rated output
current (A)

Single-phase/three p
hase AC
200V～240V
V3000-2T0004GB
0.4
2.8
3.2
Single-phase/three p
hase AC
200V～240V
V3000-2T0007GB
0.75
4.8
5.0
V3000-2T0015GB
1.5
8
8.8
V3000-2T0022GB
2.2
10
11.5













Three-phase AC
340～460V
V3000-4T0007GB
0.7
2.5
3
V3000-4T0015GB
1.5
4.2
4.6
V3000-4T0022GB
2.2
5.6
6.5
V3000-4T0040GB
4.0
9.4
10.5
V3000-4T0055GB
5.5
13
15.7
V3000-4T0075GB
7.5
17
20.5
V3000-4T0110GB
11
25
28
V3000-4T0150GB
15
32
36
V3000-4T0180GB
18.5
38
41.5
V3000-4T0220GB
22
45
49
V3000-4T0300GB
30
60
70
V3000-4T0370GB
37
75
85
V3000-4T0450G
45
90
105
V3000-4T0550GB
55
110
134
V3000-4T0750GB
75
150
168
V3000-4T0900GB
90
176
200
V3000-4T1100GB
110
210
235
V3000-4T1320GB
132
253
290
V3000-4T1600GB
160
304
340
Ease of use
1) 380V inverter connected to 220V single-phase power supply, you can power on and debug parameters 2)The built-in braking unit has a wider range Standard built-in braking unit to 22kW • 30kW and 37kW optional built-in braking unit 3) Prevent wrong power line connection • More prominent power terminal labels • Knockdown type plastic baffle
The control terminal is rich in functions
1） 5 digital input terminals, support NPN/PNP input mode;
2）X5 terminal supports 100kHz high frequency pulse input; 3） AI1: -10V~10V voltage 4） AI2: 0-10V/4-20mA
5）Analog output supports
0-10V/4-20mA 6） Standard built-in Modbus, A+, A-
 Perfect protection function
1) Protections against the Output inter-phase short circuit, overcurrent, overvoltage, overload, overheating, etc. 2) Short-circuit protection of running output to ground: The inverter will immediately perform short-circuit protection detection to ground. Once it is found that the motor side is short-circuited to ground, the output will be stopped immediately, and the short-circuit to ground E76 will be reported.
Why Choose Us
Production Process
FAQ
Q1: Do you provide samples ? is it free or extra ?
A1: Yes, we could offer the sample to test with reasonable charges.We can send the sample to you by express like DHL or UPS,normally you can receive the sample in one week.

Q2: What is your terms of payment ?
A2: 100% in advance . Welcome pay by Trade Assurance through Alibaba so your payment can get guarantee from ALibaba company. L/C and O/A would be possible for regular customers.

Q3: What is your terms of packing?
A3:Generally, We use carton box pack low rated power VFD, VFDs that are 55KW and above are packed by wooden box. reasonable specialpacking requirements from customers are acceptable for us.

Q4. Do you test all your goods before delivery?
A4: Yes, 100% test before delivery

Q5: How long is your delivery time?
A5: Generally it would be 5-10 days if the goods are in stock. or 15-20 days if the goods are not in stock, it is according to
quantity. we have much experiency supply goods to big customer,so don't worry about the delivery time.
