Industrial Equipment 11kW 18.5kW 22kW 380V/480V VFD AC Drive Pump Motor VFD Variable Frequency Converters Inverters

1.0 piece
MOQ
Industrial Equipment 11kW 18.5kW 22kW 380V/480V VFD AC Drive Pump Motor VFD Variable Frequency Converters Inverters
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: V5000
Warranty: 12 months
Type: AC-DC-AC Variable-Frequency Drive
Certificering: CE
Customized: Yes
Control Mode: Vector, V/F
Rated Power: 22kW
Nominal Voltage: 380V/480V/690V
power phase number: Triple
Output Current: 45A
Output Frequency: 0-500Hz
Power range: 0.75kW-2000kW
Overload Capacity: 150% FLC for 60s;200% FLC for 2s
Protection: Overcurrent,Short circuit,Overheat
Application: Industrial Equipment
Color: Black,Gray
Material: Metal,PVC
MOQ: 1 Piece
Package: Wooden Box Safe Packing
Basis informatie
Certificering: CE
Model Number: V5000
Betalen & Verzenden Algemene voorwaarden
Supply Ability: 500 Piece/Pieces per Month
Productomschrijving
Product Description

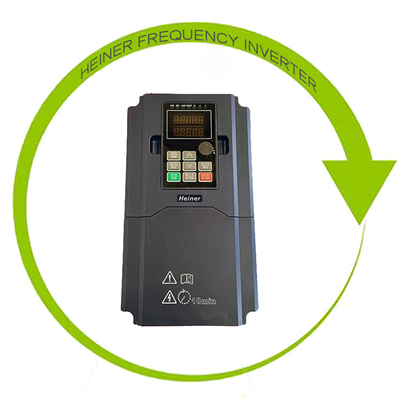

11kW 18.5kW 22kW 380V/480V VFD AC Drive Pump Motor VFD Variable Frequency Converters Inverters

Heiner VFD/frequency inverter covers a wide range of options. Ideal for variable and constant torque applications from pumps and fans to conveyors and mixers as well as many other variable and constant torque applications. Applying the most advanced vector control technology , 32bits DSP control system and Infineon latest IGB technology, Excellent unique ventilation design with powerful big fans.

Specification:( V5000, SCDD)
Single Phrase: 220V, 0.75kW ~ 2.2kW
Three Phrase: 380V/480V/690V , 0.75kw ~ 2000kW


Heiner Frequency inverter AC drive feacture:

● Excellent quick response with vector control ● High starting torque even under low speed ●Torque limit for machine safety protection ●Rapid current limit, up to 20 kinds protection function ● Latest generation Infineon IGBT modules using ●Control mode: Vector control without PG, V/f control ●Protection function: Provide 25 kinds fault protection, over current, over voltage, under voltage, phase missing, overload ●Cooling method: force cooling
Specification
MODEL
RATED POWER
(KW)
RATED OUTPUT
CURRENT (A)
MODEL
RATED POWER
(KW)
RATED OUTPUT
CURRENT (A)
V5000-1R5G
1.5
3.8
V5000-160G/185P
160
304
V5000-2R2G
2.2
5.1
V5000-200G/250P
200
380
V5000-3R7G
3.7
9
V5000-220G/250P
220
426
V5000-5R5G/7R5P
5.5
13
V5000-250G/280P
250
465
V5000-7R5G/011P
7.5
17
V5000-280G/315P
280
520
V5000-011G/015P
11
25
V5000-315G/350P
315
585
V5000-015G/018P
15
32
V5000-355G
355
650
V5000-018G/022P
18.5
37
V5000-400G
400
725
V5000-022G/030P
22
45
V5000-450G
450
820
V5000-030G/037P
30
60
V5000-500G
500
910
V5000-037G/045P
37
75
V5000-630G
630
1150
V5000-045G/055P
45
90
V5000-800G
800
1450
V5000-055G/075P
55
110
V5000-1000G
1000
1820
V5000-075G/090P
75
152
V5000-1250G
1250
2280
V5000-090G/110P
90
176
V5000-1500G
1500
2830
V5000-110G/132P
110
210
V5000-1850G
1850
3360
V5000-132G/160P
132
253
V5000-2000G
2000
3650
MODEL
RATED POWER
(KW)
RATED OUTPUT
CURRENT (A)
RATED OUTPUT
CURRENT (A)
RATED OUTPUT
CURRENT (A)
RATED OUTPUT
CURRENT (A)
SCDD-1R5G
1.5
3.7
SCDD -160G/185P
160
305
SCDD -2R2G
2.2
5
SCDD -185G/200P
185
340
SCDD -3R7G
4
9.5
SCDD -200G/250P
200
380
SCDD -5R5G/7R5P
5.5
14
SCDD -220G/250P
220
425
SCDD -7R5G/011P
7.5
18.5
SCDD -250G/280P
250
480
SCDD -011G/015P
11
25
SCDD -280G/315P
280
530
SCDD -015G/018P
15
32
SCDD -315G/350P
315
600
SCDD -018G/022P
18.5
38
SCDD -350G
350
650
SCDD -022G/030P
22
45
SCDD -400G
400
720
SCDD -030G/037P
30
60
SCDD -500G
500
860
SCDD -037G/045P
37
75
SCDD -560G
560
1060
SCDD -045G/055P
45
92
SCDD -630G
630
1200
SCDD -055G/075P
55
115
SCDD -700G
700
1300
SCDD -075G/090P
75
150
SCDD -800G
800
1440
SCDD -090G/110P
90
180
SCDD -1000G
1000
1920
SCDD -110G/132P
110
215
SCDD -1250G
1250
2400
SCDD -132G/160P
132
260
Company Profile

Yuncheng Heiner Frequency Converter Co., Ltd. is a high-tech enterprise specializing in the development, production and sales of frequency inverter. We have been devoted to the research and development of frequency inverter since 2010,especially high power inverter. The power range is from 0.75kw up to 2000kw. We have two brands: 齐鲁松川and HEINER. In the process of research and development,we always adhere to the principles of quality first. We adopt the world-class high technology such as DSP technology,current vector technology in the production.
The product has four characteristics: High efficiency,small volume, low noise, and super performance. They can be widely used in CNC machine tools and robots, marine engineering equipment, ships, rail transit equipment, Energy-saving and new energy vehicles, agricultural machinery and equipment, logistics and warehousing, electric power, coal, petrochemical, chemical, environmental protection, pharmaceuticals, non-ferrous metals, steel and other fields.They can help manufacturers improve equipment automation, energy conservation and efficiency, and reduce production costs,help the equipment manufacturing industry products green and intelligent upgrades and improve market competitiveness.
The company has strong technical force, strict quality control system and most advanced production technology and equipment. Though the innovative idea,scientific management and conscientious working attitude we are occupying the big domestic market share with high quality products and competitive price. The products are far distributed to southeast Asia. The Middle East, Europe, America and so on.
Heiner is looking for agents worldwide to distribute our quality frequency inverters. We look forward to building a brighter future with our partners together.
Transport
FAQ

1.Are you a factory or trade company?

We are factory with more than 10 years manfucturing experience.

2.What voltage range can you support?

Single-phase 220v inputthree-phase 220v output Three-phase 220v inputthree-phase 220v output Also have three phase output 440v,525V,660v,690v optional.

3.Do you support urgent orders?

Yes, We have an ERP management system. Once there is an inventory warning, we will prepare materials in advance to meet the urgent needs.

4.Do you supply OEM service?

Yes. we can accept the OEM and ODM service.
